ADJUSTABLE RIDE POSITION

A unique feature of the Vulcan S is the ability to change the Seat and Handle bars (accessories) and adjust the foot leaver positions to suit a variety of riders.  The Vulcan S offers Standards Reach, Reduced Reach (for shorter riders) and Extended Reach (for taller riders) options.  Talks to your Kawasaki Dealership about getting the right fit for you on the Vulcan S.  The Vulcan S is an extremely adaptable cruiser that showcases adjustable positions for every rider.  The changes are made using Kawasaki Genuine Accessories.

GENUINE ACCESSORIES

A superb range of Kawasaki Genuine Accessories are available for the Vulcan S; Saddle Bags, Light Bars, Tank Bag, Tail Bag, Rear Rack and kits to set the Vulcan S up for solo or 2-up touring.  Many of the Genuine Accessories feature the Kawasaki Quick Release system, making it easy to change your Vulcan S to suit each ride.

LOW SEAT HEIGHT

Low seat and slim overall design make it easy to reach the ground with both feet, contributing to rider confidence.

ABS BRAKES STANDARD

Large-diameter disc brakes balance ample stopping power with easy control. Customers looking for an added degree of reassuring braking performance with standard front and rear ABS.

THE VULCAN S IS BREAKING BOUNDARIES

The heart of a sportsbike and the comfort of a classic cruiser.  With capable torque, high rpm and generous lean angles, every ride on the Vulcan S motorcycle has the potential for excitement.  The added benefit of adjustable Kawasaki components make the Vulcan S the ultimate in versatility for riders of varying sizes and abilities.

LIQUID COOLED PARALLEL TWIN ENGINE

Liquid-cooled, DOHC, 8-valve 649 cm³ Parallel Twin with fuel injection delivers smooth, responsive performance, especially in the low and medium rpm ranges. The engine was tuned for rider-friendly power characteristics that will inspire confidence in new riders. The Vulcan S offers smooth starts from a standstill, smooth acceleration, and a satisfying pull when accelerating. The strong acceleration facilitates highway merging and passing. The Vulcan S is also fitted with the Kawasaki exclusive neutral finder, when stationary in first gear, just shift up and it will automatically find neutral.

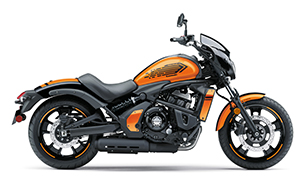

Tyres and Brakes

Wheel sizes (18-inch for the front, 17-inch for the rear) are closer to those found on a sport bike than a typical cruiser model (which often have much larger front wheels). The slightly larger front wheel contributes to the Vulcan S’s natural, light handling.
The Vulcan S is equipped with front and rear disc brakes. The 300mm front is gripped and 250mm rear brake rotors are gripped by a twin-piston caliper at the front and a single piston caliper for ample stopping power.

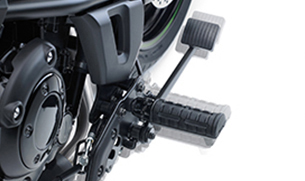

CUSTOM FIT & ADJUSTABILITY

Footrest position adjustable with three positions available: STD, 25 mm forward, 25 mm back.
(Alternate shift linkage rods, sold separately, are necessary when changing the position from standard.)

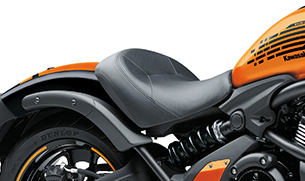

LOW COMFORTABLE SEAT

Features a low 705mm seat height. The seat design with thick, 62mm padding offers a wide surface and excellent hip support, ensuring ample comfort for city riding and short tours. The seat bracket is rubber-mounted, reducing vibration transferred through the seat. Optional Reduced Reach and Extended Reach accessory seats are available to customise your fit.

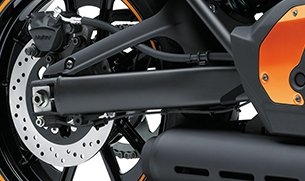

D-shaped swing arm

The swingarm’s D-shaped cross-section gives it a pipe-like design that matches the frame, and contributes to the high-quality appearance.

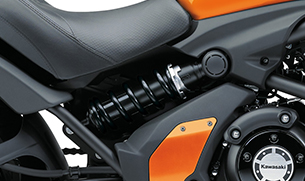

OFFSET REAR SHOCK

Offset laydown rear single-shock supension is distinctive syling element, contributing the trend setting design. Pre-load adjustment is via an easy access 5-way cam wheel.

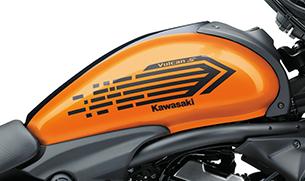

LONG RANGE

Tear drop-style fuel tank adds a cruiser-style touch. With its 14 litre tank capacity and the Parallel Twin engine’s good fuel economy, the long range offered by the Vulcan S means riders can go longer between fill-ups—convenient in town, and reassuring when out on a daytrip.

INSTRUMENTATION

Analogue-style tachometer and multi-function LCD screen use blue LED backlights for excellent visibility at night. Include a fuel gauge, digital speedometer, clock, odometer, dual trip meters, remaining range, average/instant fuel consumption and the Economical Riding Indicator.

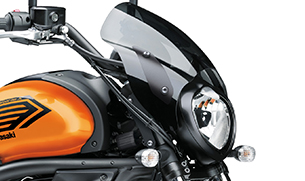

STYLING ELEMENTS

Curved, flowing style blended with a powerful, long-and-low stance and modern elements creates a unique, eye-catching design. Inverted triangle headlamp contributes to the Vulcan S’s fresh, unique design. A position lamp is built into the upper portion of the headlamp unit.

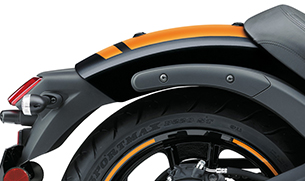

REAR FENDER

Tail fender shaped to hug the rear wheel as closely as possible, creating a compact cruiser-style design. The design was made possible in part by the offset laydown rear shock.

FRAME

Elegant pipe perimeter frame is a key component of the Vulcan S’s identity. The bike’s bodywork accentuates the frame. The design of the frame, rear suspension and swingarm create an integrated line running from the front of the bike to the rear hub. A pipe frame of high-tensile steel gives the bike a lightweight appearance.

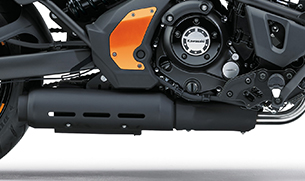

MUFFLER

Attractive bend of the exhaust pipes and an under-engine muffler arrangement contribute to the Vulcan S’s attractive styling.

Model VULCAN S  CAFE (LAMS)  (EN650EKFW)

Engine Type Liquid-cooled, 4-stroke Parallel Twin

Displacement 649 cm³

Bore x Stroke 83 x 60 mm

Compression Ratio 10.8:1

Valve System DOHC 8 valve

Fuel System Fuel injection: Ø 38 mm x 2 (Keihin)

Ignition Digital

Starting Electric

Transmission 6-speed, return

Final Drive Type Sealed chain

Frame Perimeter, high-tensile steel

Wheel travel – front
130 mm

Wheel travel – rear
80 mm

Tyre Size-front 120/70R18M/C (59H)

Tyre Size-rear 160/60R17M/C (69H)

Suspension – front
41 mm telescopic fork

Suspension – rear
Offset laydown single-shock, linkage-equipped with adjustable preload

Brakes – front Single ø300 mm discs with dual-piston caliper and ABS

Brakes – rear Single 250 mm disc with single piston caliper and ABS

L x W x H 2,310 x 880 x 1,130 mm

Wheelbase 1,575 mm

Ground Clearance
130 mm

Seat height 705 mm

Fuel capacity 14 litres

Curb Mass 226 kg (includes full fuel tank, all fluids at optimum levels)

Max Power 35.0 kW {48 PS} / 6,600 rpm

Max Torque 53.0 Nm {5.4 kgm} / 5,600 rpm

Colour New Yellowish Orange

Warranty 24 Months Unlimited Kilometres
