FACTORY STYLE CHASSIS, COMPONENTS AND TUNING
Matching the KX450F’s lighter weight, the minimalist bodywork makes the bike look more compact. Its shroud, fender and number plate designs ensure it is the sharpest looking bike in the paddock. The Kawasaki’s first in-mould graphics, used on the shrouds, result in an ultra-smooth surface and ensure the racy graphics are not easily damaged. Factory-style graphics further reflect the KX450F’s highly tuned performance, and green highlights on the suspension adjusters and engine oil cap and generator cover plugs contribute to a distinctive Kawasaki look.
Aggressive design of the front fender adds to the racy looks. Rims are coated in black alumite1 – just like our factory racers. Fork and rear shock adjusters have a Candy Lime Green Type 2 alumite1finish like our U.S. factory racers. Embossed design on the clutch cover designed to gradually appear as contact from riding boots wears off the paint. Engine covers are finished in silver paint, further reinforcing the KX450F’s factory image. Large synthetic skid plates with oval holes facilitates mud removal and keeps the weight down.
The design of the aluminium rear sprocket contributes to the bike’s sharp looks.
Upper and lower triple clamps are designed based on feedback from Kawasaki’s factory race teams offer improved stability on corner entry, enabling quicker turn-in.

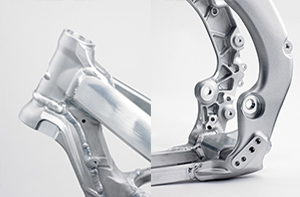

The narrow frame contributes to a slim overall package with good ergonomics. The slim riding position facilitates control.
Previously an extruded part, the front down tube is now a combination forged/cast piece (front part is forged; rear part is cast). The combination of this design contributes to greater front-end feel.
The centre of gravity and key dimensions (swingarm pivot, output sprocket and rear axle locations) were chosen so that the rear tyre would drive the bike forward (instead of causing it to squat).

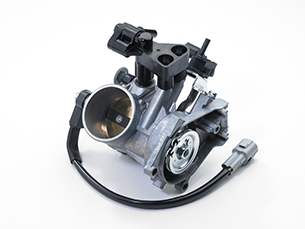

COMPACT AND LIGHT THROTTLE BODY
FUEL INJECTION SYSTEM

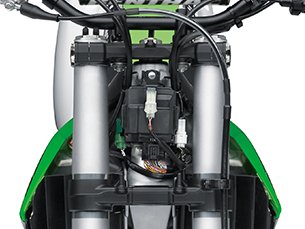

Designed specifically for motocrossers, the fuel injection system incorporates a small lightweight ECU and operates without a battery to further eliminate unnecessary weight. And of course, fuel injection eliminates the need to adjust engine settings to suit track and climate conditions.

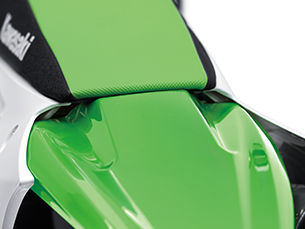

REAR FACING AIR INTAKES

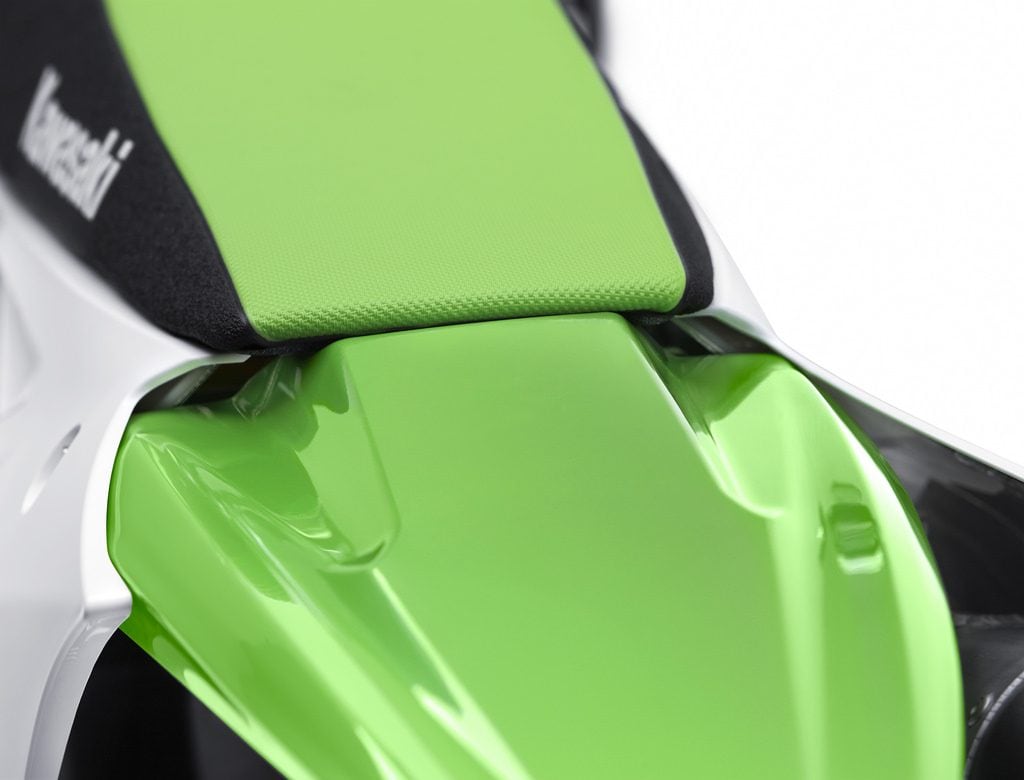

Two rear intakes (holes added under the rear of the seat) allow air to enter the engine more easily, contributing to improved response.

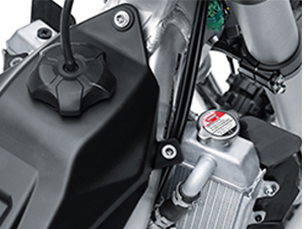

The inward-angled orientation of the radiators (turned in 10 degrees) allows the shrouds to be very slim.
Top of the fuel tank is flat and low, for a very smooth progression from the seat to the tank. The flat design gives the rider greater freedom of movement when changing riding position, and facilitates sitting farther forward.

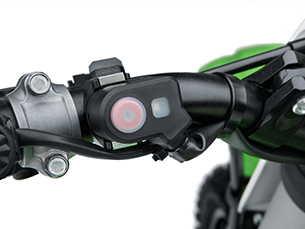

LAUNCH CONTROL MODE: THE HOLESHOT ADVANTAGE
KX motocrossers have long drawn on works technology to offer riders the best possible performance right out of the box. Launch Control Mode is just one of the factory features that give riders an edge when lining up at the start gate.

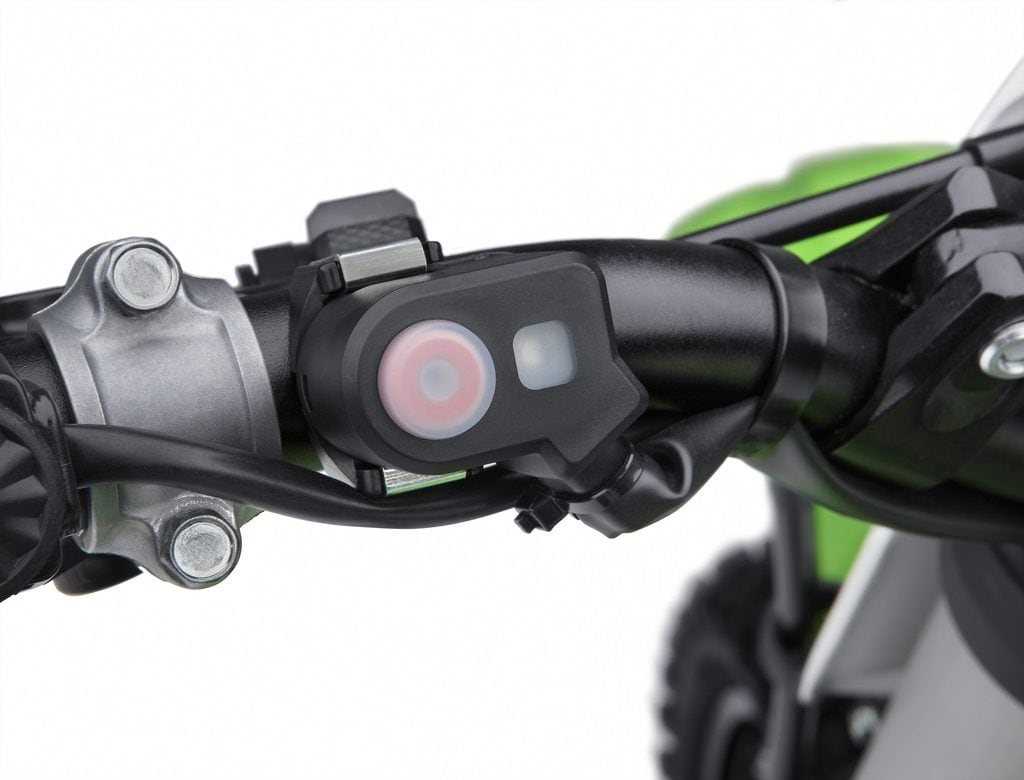

The KX450F features a launch control system similar to that on our factory racers. With the simple press of a button, riders can activate a separate engine map designed to ensure efficient race starts in slippery conditions. (The Launch Control Mode map retards ignition timing, allowing tyres to gain grip in low-traction situations, and allowing riders to focus on their lines.)
SETTING-ADJUSTABLE MOTOCROSS ECU
Lightweight ECU was designed specifically to withstand the rigors of motocross racing. ECU contains three plug and play engine maps (plus a fourth for Launch Control Mode). Settings for the three maps can be reprogrammed with the optional KX FI Calibration Kit.

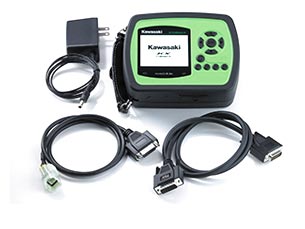

KX FI CALIBRATION CONTROLLER (ACCESSORY)
KX FI Calibration Controller, a portable handheld calibration tool, enables riders to make changes to engine maps by plugging into the ECU without needing a PC or battery. Comes equipped with seven preset map settings.

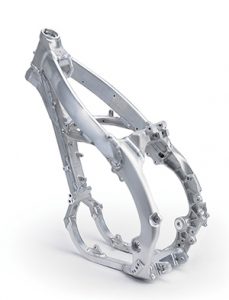

SLIMMER, LIGHTER ALUMINIUM PERIMETER FRAME

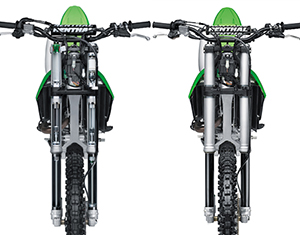

ADVANCED RACE READY SUSPENSION: SFF-AIR TRIPLE AIR CHAMBER
The KX450F features Showa’s SFF (Separate Function front Fork)-Air TAC (Triple Air Chamber). The works-replica fork is very lightweight and highly rigid, contributing to superior riding stability. With settings chosen for high-level to expert riders, the new fork offers excellent shock absorption performance at high speeds, making it easier for racers to ride faster.
Low-friction seals, and valve settings deliver and easy fork movement, matching the pitching characteristics to the lighter chassis.
Fork inner tubes feature lower rigidity, idealised for the chassis.

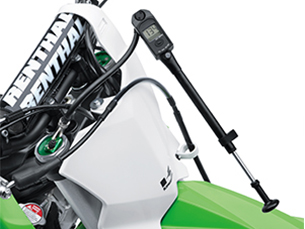

DIGITAL HAND PUMP
A digital hand pump is recommend to make adjustments – see you Kawasaki Dealer for the preferred pump (part # 999A423). Talk with your Kawasaki Dealer to find the best settings to suit your riding.

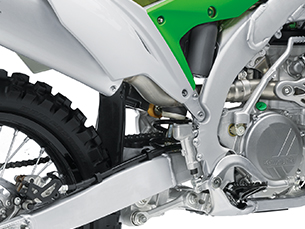

RACE ORIENTED SUSPENSION
The rear shock features dual compression adjustability, allowing high-speed and low-speed damping to be tuned separately. A self-lubricating alumite coating on the tank cylinder helps prevent wear abrasion, and reduces friction for smoother suspension action.
The New Uni-Trak rear suspension system mounts the suspension arm below the swingarm, allowing a longer rear suspension stroke. The long stroke design in turn allows more precise rear suspension tuning.
Extensive rider testing was conducted to determine the ideal linkage ratios and rear shock absorber damping settings to achieve maximum rear wheel traction.
Linkage ratios were also chosen to suit the light chassis.
