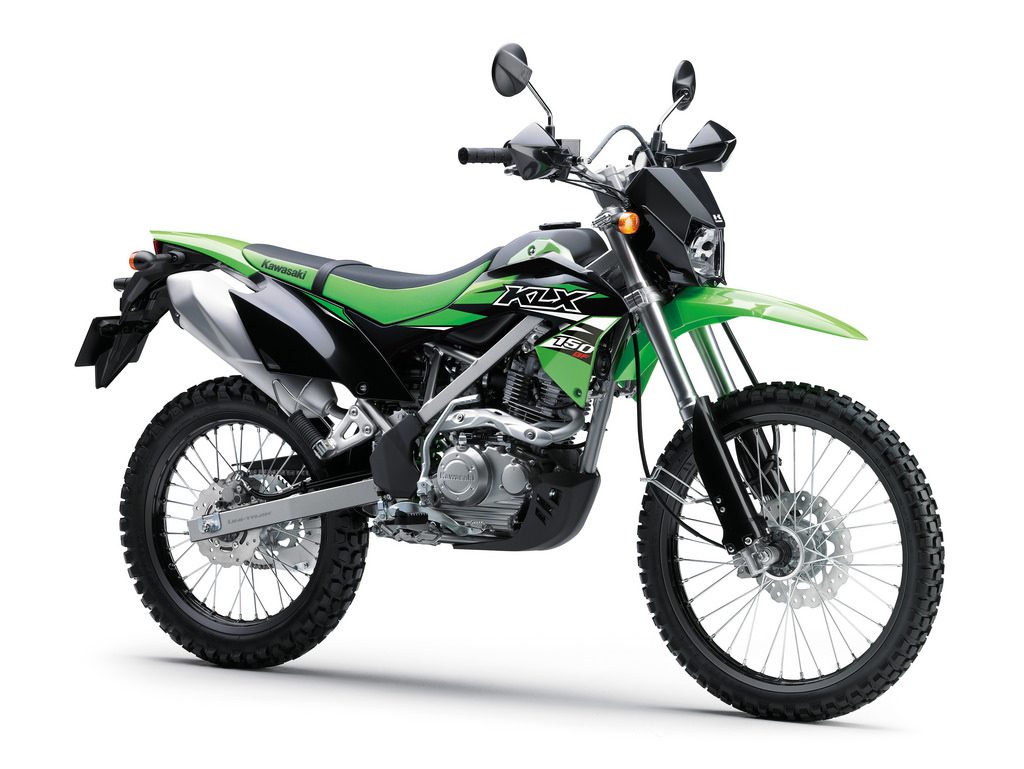

KLX150BF

Engine
Model KLX150BF
Engine Type Air cooled, single cylinder
Displacement 144 cm³
Bore X Stroke 58.0 x 54.4 mm
Compression Ratio 9.5:1
Valve System SOHC, 2 valves
Fuel System Keihin NCV24
Ignition DC-CDI
Starting Electric
Transmission 5-speed
Clutch Wet multi-disc, manual
Frame
Type Perimeter, box-section, high-tensile steel
Wheel Travel Front 175 mm
Wheel Travel Back 192 mm
Tyre
Front 2.75-21 45P
Rear 4.10-18 59P
Suspension
Front 33mm telescopic fork
Rear Uni-Trak rear, single gas-shock with 5-way preload adjustability
Brakes
Front Single 240 mm petal disc with twin piston caliper
Rear Single 190 mm petal disc, with a single-piston calliper
Dimensions
L x W x H 2,070 x 950 x 1,155 mm
Wheelbase 1,340 mm
Ground Clearance 295 mm
Seat Height 870 mm
Curb Mass 118 kg (includes full fuel tank, all fluids at optimum levels)
Fuel Capacity 6.9 litres
Performance
Colour/s Ebony
Warranty 24 Months Unlimited Kilometres
