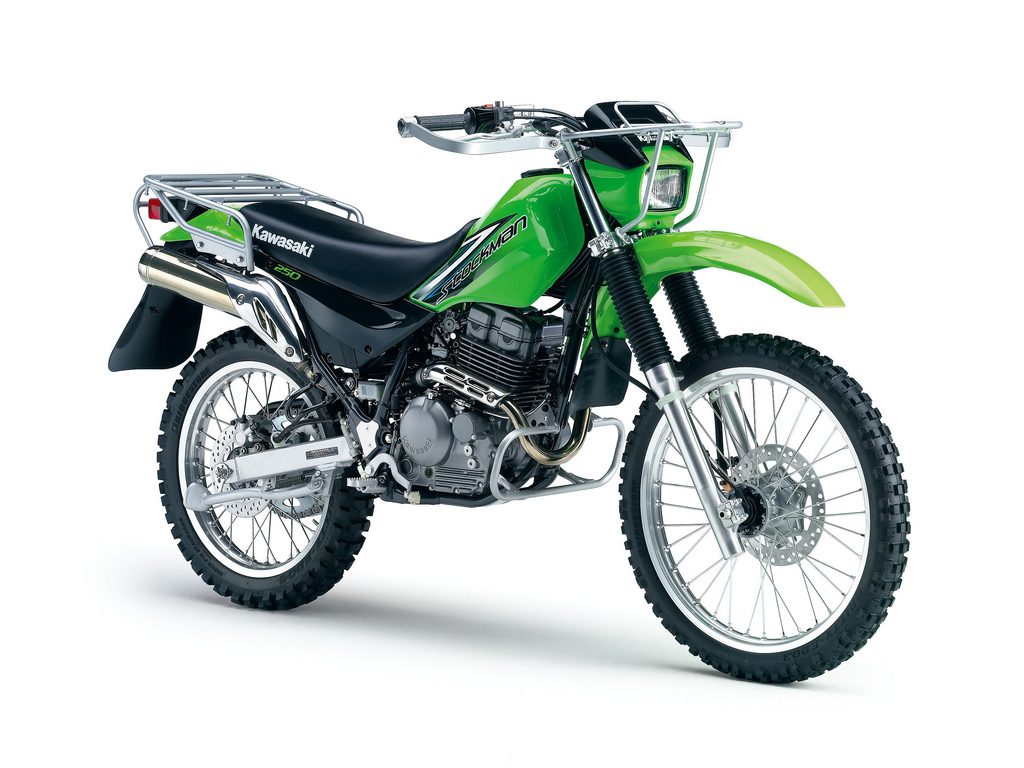

• STOCKMAN

BUILT TOUGH FOR AUSSIE CONDITIONS

Designed in Australia for Australia, the Stockman is a real world performer that was born and bred for Australia’s uniquely harsh conditions out on the land. Featuring 50cc’s more engine capacity than any other ag-bike in the market and tougher-than-leather build quality and reliability, the Stockman is a thoroughbred workhorse that will keep working hard long after the cows have come home and left again.

POWERFUL 249 CM³ FOUR STROKE AIR COOLED DOHC 4-STROKE ENGINE

The Stockman’s torquey, 249cc double overhead cam four-stroke engine is larger and more powerful than any other in its class. As you’d expect, it boasts Kawasaki’s bullet-proof reliability and features air-cooling for extra simplicity.

ENGINE GUARDS

The engine is protected by the front engine guard. Rust-resistant fasteners contribute to engine quality.

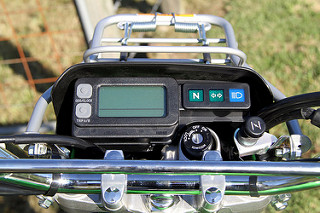

LCD DISPLAY WITH HANDY FRONT RACK

The Stockman has an easy-to-read digital display with all the normal functions. There is a protective guard for the head light and handy front rack with a spring load clip.

LARGE REAR RACK

Built tough, and integral to the Stockman’s chassis design, the front carry rack features a convenient spring retaining clip for securing light loads while the sturdy rear rack will carry up to a hefty 20kg.

STAINLESS STEEL EXHAUST

The entire exhaust system is constructed from high-grade stainless steel for high corrosion resistance and extended service life. The silencer is well-muffled to ensure quiet operation at all throttle openings.

9 LITRE FUEL TANK

The Stockman 250 has a 9 litre fuel tank, with the economically tuned 250 engine provides a fuel range to keep working all day long.

LOW-MAINTENANCE BRAKES

A dual-piston disc up front and single-piston disc at the rear take care of braking duties, enabling brisk, controlled stops. Thanks to their simplistic design, the brakes are extremely low maintenance and offer long wear-life.

RUGGED HAND GUARDS

Rugged and tough aluminium hand and lever guards offer superior protection to hands while averting brake and clutch lever breakages.  The clutch lever has  a handy locking mechanism that allows for quick dismounts to open or close gates without first finding neutral.

DUAL SIDE STANDS

The Stockman has dual side stands for easy parking on the side a of hill without having to turn the bike around to make it more stable.

Model STOCKMAN 250 (KL250JCF)
Engine Type 4-stroke, air cooled, single cylinder
Displacement 249 cm³
Bore x Stroke 72.0 x 61.2 mm
Compression Ratio 9.3:1
Valve System DOHC 4 valve
Fuel System Mikuni BST34
Ignition DC-CDI
Starting Electric
Transmission 6-speed
Clutch Wet, multi-disc
Frame Tube semi-double cradle, high-tensile steel
Wheel travel – front 230 mm
Wheel travel – rear 186 mm
Tyre Size-front 2.75-21 (45P)
Tyre Size-rear 4.10-18 (59P)
Suspension – front 36 mm telescopic fork
Suspension – rear Bottom-Link UNI-TRAK, gas-charged shock with stepless spring preload and 18-way rebound damping adjustment
Brakes – front Single 240 mm diameter disc with dual piston caliper
Brakes – rear Single 210 mm diameter disc with single piston caliper
L x W x H 2,140 x 900 x 1,130 mm
Wheelbase 1,375 mm
Ground Clearance 270 mm
Seat height 830 mm
Fuel capacity 9.0 litres
Curb Mass 133 kg (includes full fuel tank, all fluids at optimum levels)
Max Power NA
Max Torque NA
Colour Lime Green
Warranty 12 Months Unlimited Kilometres

WHEELS AND TYRES

Lightweight aluminium rims contribute to lighter, smoother handling. The 21 inch front and 18 inch Knobby Tyres feature large blocks for excellent traction in poor conditions. The cam-type chain adjusters allow easy adjustment of chain slack, helping to minimise drivetrain power transfer loss. Upper guard and lower chain guide helps protect the chain and keep it on on the sprocket.

TOOL KIT

A handy Tool Kit is storied in an easy access plastic cannister mounted on the left below the rack.
