| Engine | |
|---|---|

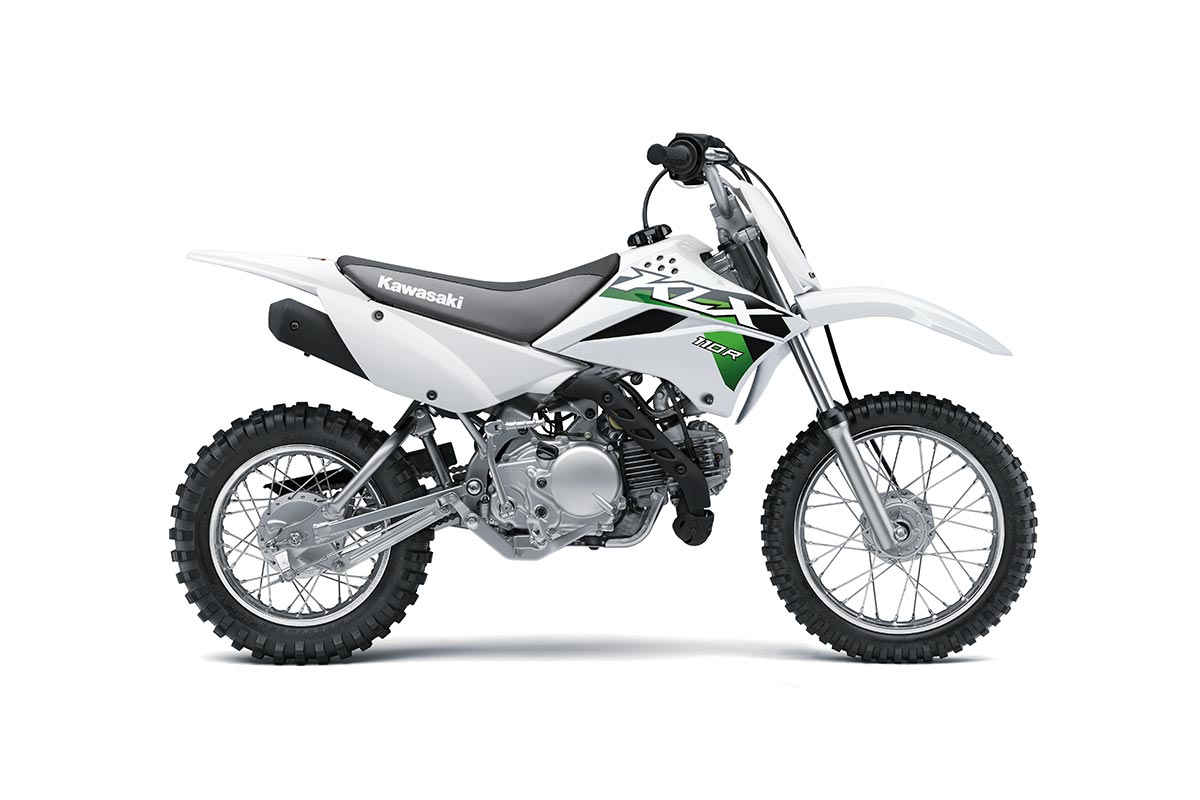

| Model | KLX110 |
| Engine Type | 4-stroke, air cooled, single cylinder |
| Displacement | 112 cm³ |
| Bore X Stroke | 53.0 x 50.6 mm |
| Compression Ratio | 9.5:1 |
| Valve System | SOHC 2 valves |
| Fuel System | Keihin PB18 |
| Ignition | Digital DC-CDI |
| Starting | Kick or Electric Start with KACR |
| Transmission | Centrifugal, wet multi-disc |
| Clutch | Wet multi-disc, manual |
| Frame | |
|---|---|
| Type | Steel backbone |
| Wheel Travel Front | 110 mm |
| Wheel Travel Back | 110 mm |
| Tyre | |
|---|---|
| Front | 2.50-14 4PR |
| Rear | 300-12 4PR |
| Suspension | |
|---|---|
| Front | 30 mm telescopic fork |
| Rear | Single-shock |
| Brakes | |
|---|---|
| Front | Drum 90 mm |
| Rear | Drum 110 mm |
| Dimensions | |
|---|---|
| L x W x H | 1,560 x 650 x 955 mm |
| Wheelbase | 1,075 mm |
| Ground Clearance | 215 mm |
| Seat Height | 680 mm |
| Curb Mass | 76 kg (includes full fuel tank, all fluids at optimum levels) |
| Fuel Capacity | 3.6 litre |
| Performance | |
|---|---|

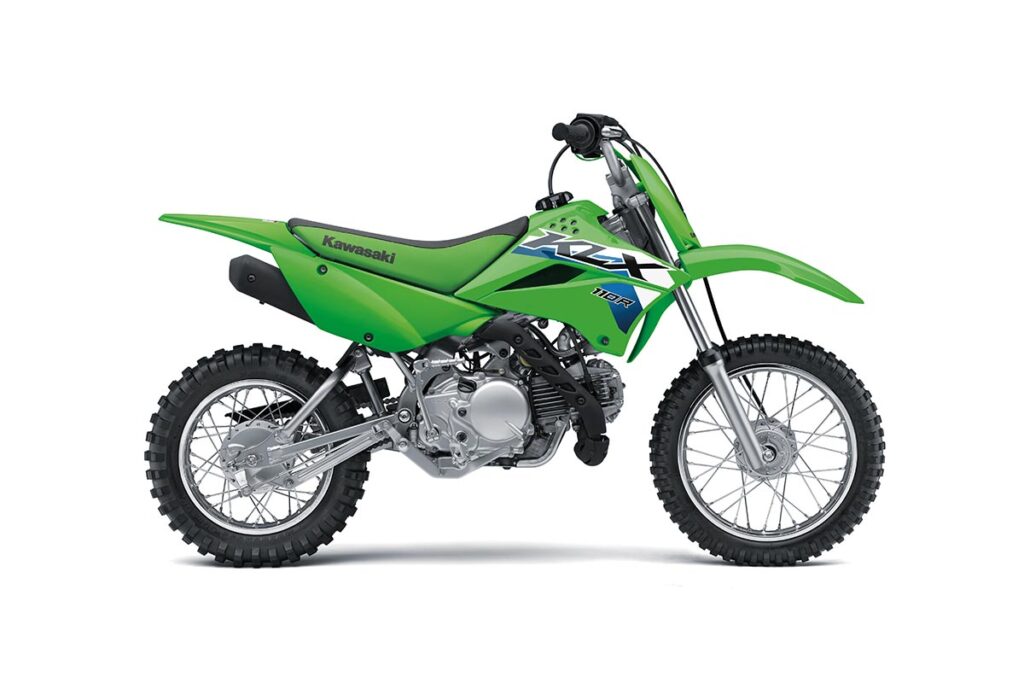

| Colour/s | Lime Green |
| Warranty | 6 Months Unlimited Kilometres |
