| Engine | |
|---|---|

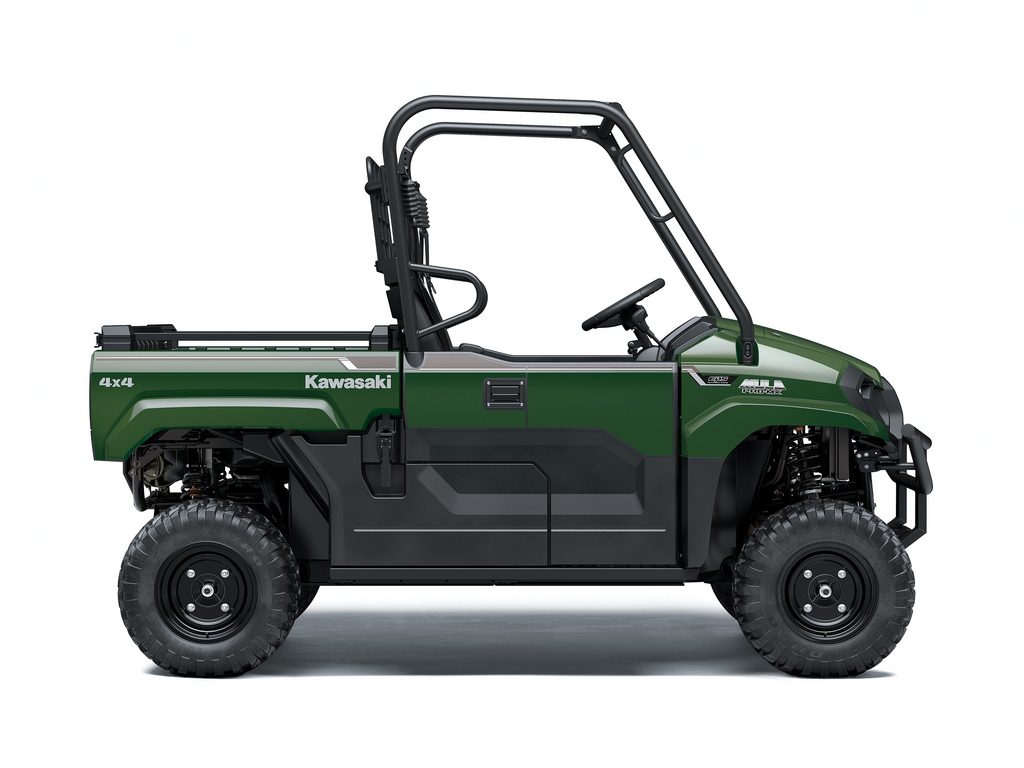

| Model | MULE PRO MX |
| Engine Type | Liquid-cooled, Single Cylinder |
| Displacement | 695 cm³ |
| Bore X Stroke | 102.0 x 85 mm |
| Compression Ratio | 10.3:1 |
| Valve System | SOHC |
| Fuel System | EFI |
| Ignition | Electronic |
| Starting | Electric |
| Transmission | Automatic CVT Dual Range forward / reverse |
| Final Drive | 4wd/2wd Shaft, dual-mode differential |
| Frame | |
|---|---|
| Type | Ladder type, tubular steel |
| Wheel Travel Front | 218 mm |
| Wheel Travel Back | 232 mm |
| Tyre | |
|---|---|
| Front | 25 x 8.00R12 Tubeless |
| Rear | 25 x 10.00R12 Tubeless |
| Suspension | |
|---|---|
| Front | Double wishbone |
| Rear | Double wishbone |
| Brakes | |
|---|---|
| Front | Dual hydraulic discs |
| Rear | Dual hydraulic discs |
| Dimensions | |
|---|---|
| L x W x H | 2,795 x 1,525 x 1,890 mm |
| Wheelbase | 2,005 mm |
| Ground Clearance | 270 mm |
| Seat Height | 850 mm |
| Curb Mass | 719 kg (includes full fuel tank and all liquids at optimum levels) |
| Fuel Capacity | 36 litres |
| Performance | |
|---|---|
| Max Power | 33.0 kW {45PS}/ 6,000 rpm |
| Maximum Torque | 58.0 N·m { 5.9 kgf·m}/ 5,000 rpm |
| Colour/s | Timberline Green |
| Warranty | 36 months - Terms and Conditions apply - Discuss with a Kawasaki Dealer |
