| Engine | |
|---|---|
| Model | Z900 |
| Engine Type | Liquid-cooled, 4-stroke In-Line Four |
| Displacement | 948 cm³ |
| Bore X Stroke | 73.4 x 56.0 mm |
| Compression Ratio | 11.8:1 |
| Valve System | DOHC, 16 valves |
| Fuel System | Fuel Injection, 36 mm x 4 with sub throttles valves |
| Ignition | Digital |
| Starting | Electric |
| Transmission | 6-speed, return |
| Final Drive | Chain |
| Clutch | Wet multi-disc, manual |
| Frame | |
|---|---|
| Type | Trellis high tensile steel |
| Wheel Travel Front | 125 mm |
| Wheel Travel Back | 130 mm |
| Tyre | |
|---|---|
| Front | 120/70-ZR17 (58W) |
| Rear | 180/55-ZR17 (73W) |
| Caster (Rake) | 24.9° |
| Trail | 110mm |
| Steering Angle (Right/Left) | 33° / 33° |
| Suspension | |
|---|---|
| Front | 41 mm cartridge fork with rebound damping and spring preload adjustability |
| Rear | Horizontal Back-link with rebound damping and spring preload adjustability |
| Brakes | |
|---|---|
| Front | Dual 300 mm semi-floating petal discs with dual opposed 4-piston calipers, ABS |
| Rear | Single 250 mm petal disc with single piston caliper, ABS |
| Dimensions | |
|---|---|
| L x W x H | 2,070 x 825 x 1,080 mm |
| Wheelbase | 1,455 mm |
| Ground Clearance | 145 mm |
| Seat Height | 820 mm |
| Curb Mass | 212 kg (includes full fuel tank and all fluids at optimum levels) |
| Fuel Capacity | 17 Litres |
| Performance | |
|---|---|
| Max Power | 92.0 kW @ 9,500 rpm |
| Maximum Torque | 98.6 Nm / 7,700 rpm |

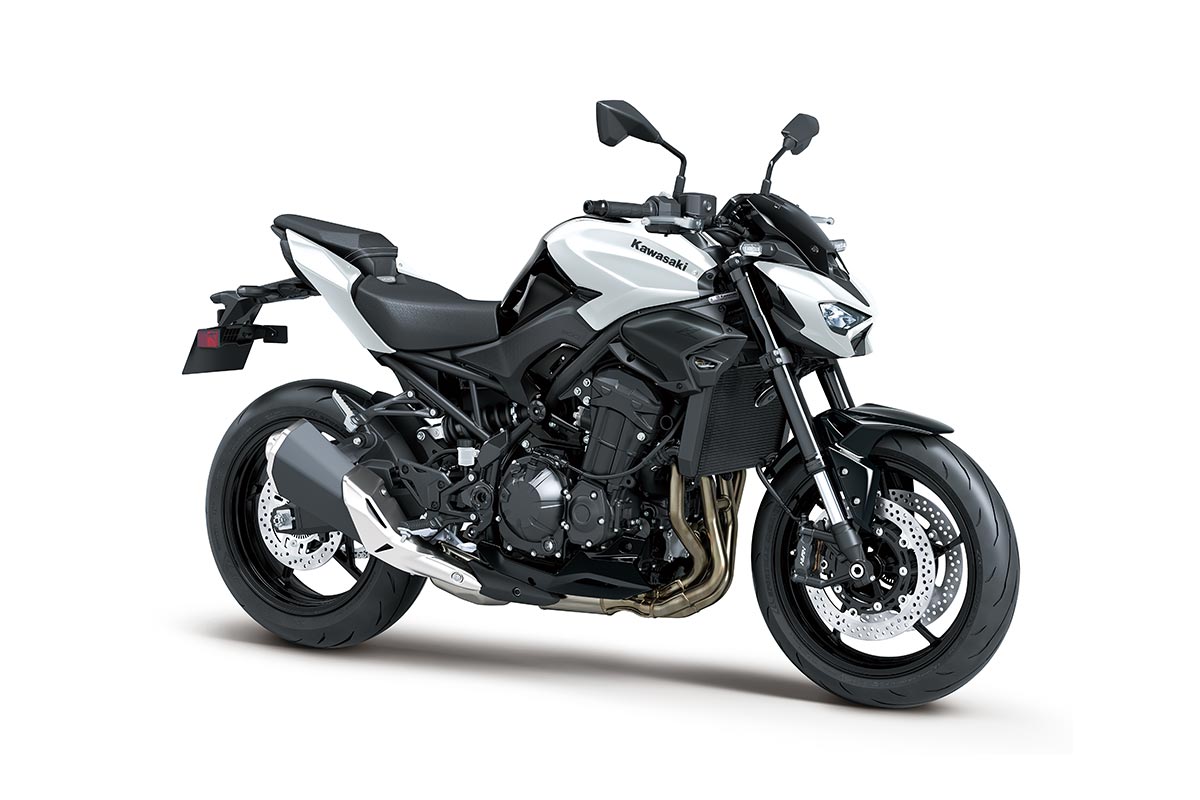

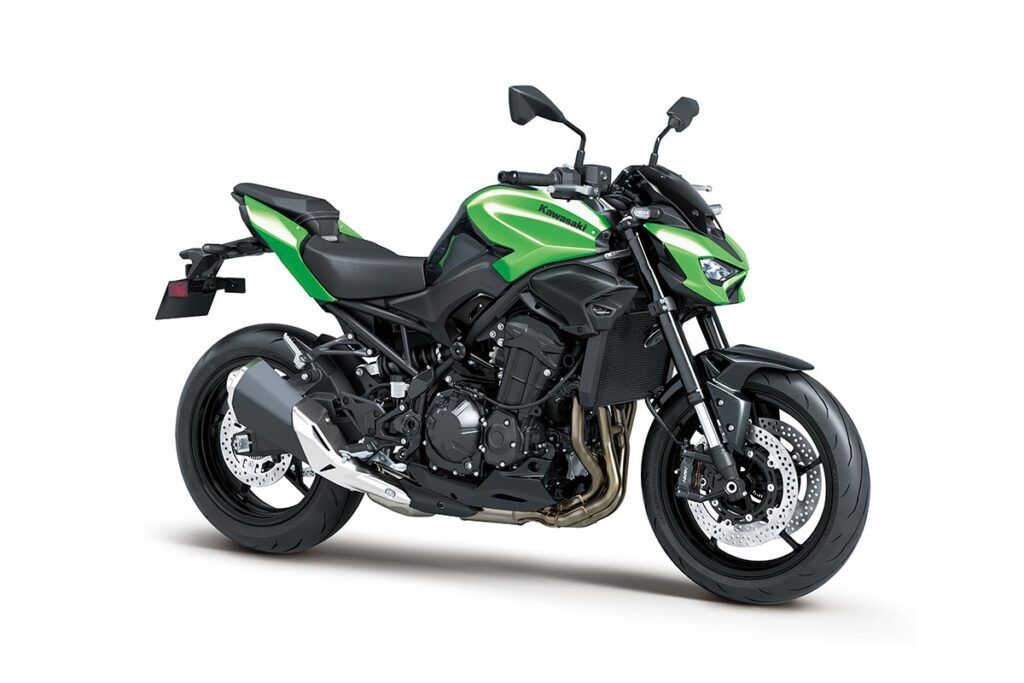

| Colour/s | CANDY LIME GREEN / METALLIC SPARK BLACK or PEARL ROBOTIC WHITE / METALLIC MATTE GRAPHENE STEEL GRAY |
| Warranty | 24 Months Unlimited Kilometres |
